High-performance CNC Automatic Steel Rule Die Bending Machine
(Model: PEC-100)
Product Description Of Auto Blade Bending Machine
PEC-100 blade automatic bending machine, also known as automatic steel rule die bending machine, indentation cutting rule bending machine, laser die bending machine, steel rule bending machine, automatic die cutting bending machine, precision steel rule bending Bending machines, etc., suitable for cutting templates in the packaging and printing industries. Widely used in the production of carton corrugated box molds, shoe molds, blister molds, Clicker molds, label electronic molds, process molds, acrylic molds, leather molds, foam molds, etc. The PEC-100 automatic steel rule die bending machine can be used with a template cutting machine to bend the blade embedded in the template. The automatic steel rule die bending machine is mainly composed of a feeding shaft, a bending shaft and a cutting shaft.
Product Features Of Auto Blade Bending Machine
1. Reduce labor costs and improve work efficiency. Various operations such as bending, bridging, and beak can be completed on one blade automatic bending machine.
2. Fully automatic bending, direct calibration after bending, no additional cutting or grinding required, saving time and labor.
3. On the automatic blade cutter, the cutting method does not cause the blade to curl, which avoids the disadvantage of edge curl caused by traditional single-blade cutting.
4. The automatic blade cutter uses Japanese high-performance servo motors and imported mold steel bending dies, which are fast and accurate, and are suitable for the production of complex graphics such as compact box molds, cartoon molds, and doll molds.
Structure And Appliacation Of Auto Blade Bending Machine

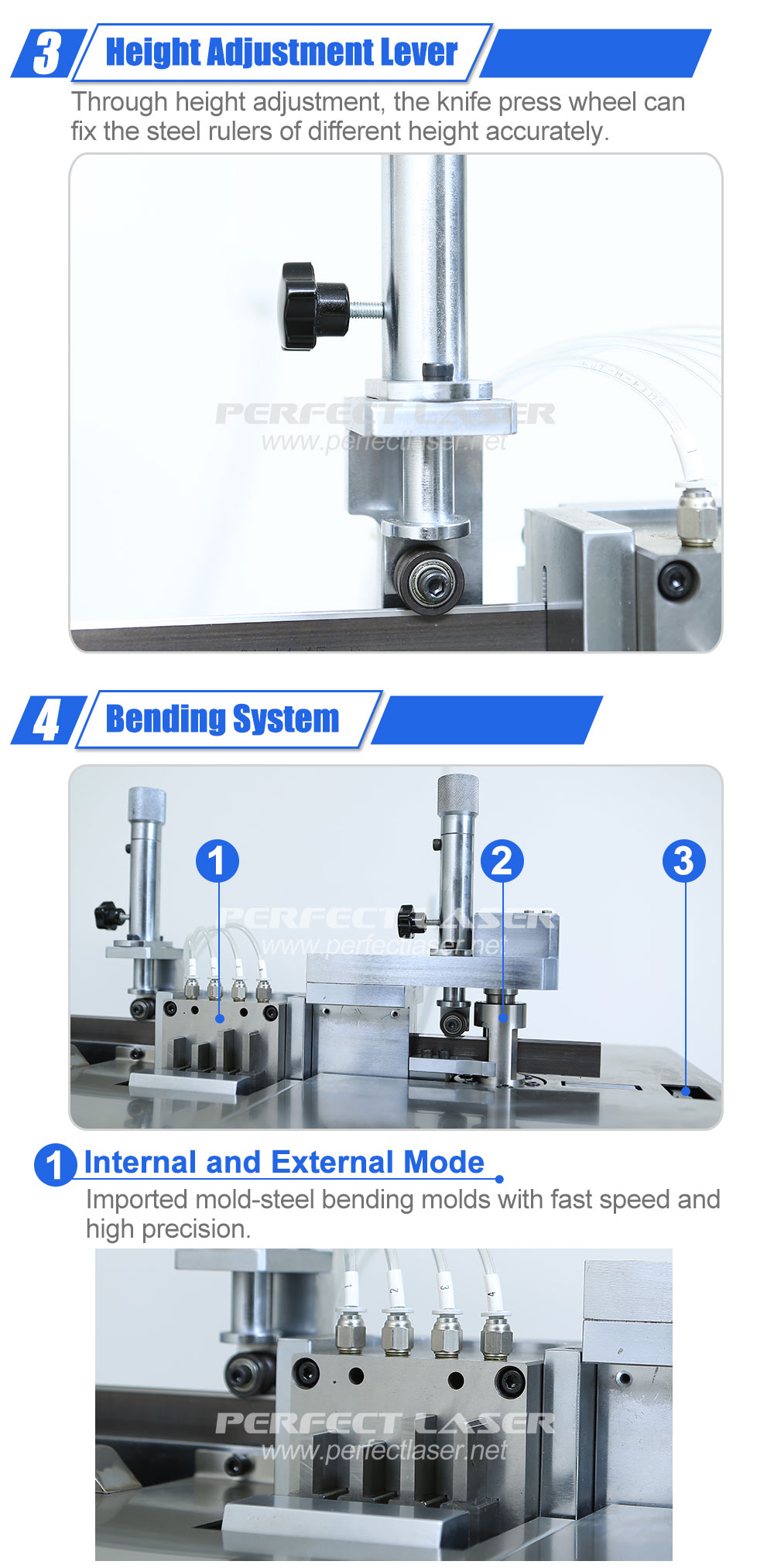

Detailed Images Of Auto Blade Bending Machine
Specifications Of Auto Blade Bending Machine
| Device Name |
Blade Bending Machine |
| Model |
PEC-100 |
| Feeding Accuracy |
±0.3mm |
| Maximum Bending Angle |
110° |
| Motor |
Feeding, bending:
Japan imported servo motor, 400W x 2
Bridge: 750W x 1
|
| Rail Screw |
Taiwan TPI |
| Blade Size |
Thickness: 0.71mm / 1.07mm (0.45mm / 0.53mm optional);
Height: 23.8mm (conventional), can up to 30mm;
|
| Bridge Height |
15mm / 18mm |
| Air Compressor Pressure |
0.5-0.8mpa |
| Tracheal Diameter |
10mm |
| Optional Device |
Feeding table cover |
| Support File Format |
DXF |
| Total Power |
1.5 KW |
| Voltage |
AC/ 220V / single phase |
| Dimension |
2800 x 730 x 1310mm |
Sample Show Of Auto Blade Bending Machine
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
